Crane Current Collector
-
Introduction:
Crane current collectors are used to collect current from conductors of cranes. The current collectors can be single pole current collector, multi-pole current collector, rigid body current collector, etc. These current collectors can be used with seamless conductor rails, enclosed tube type conductors and copper head conductors, etc.
-

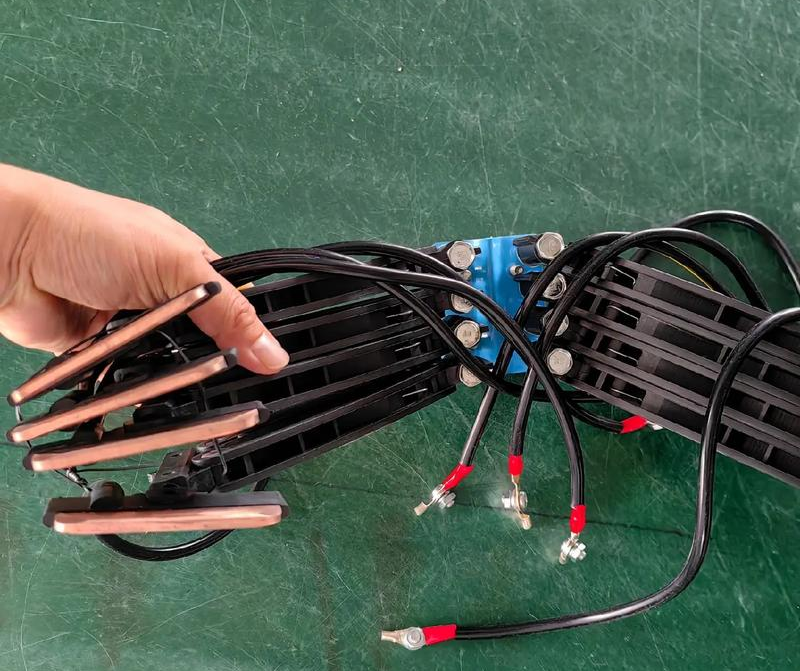

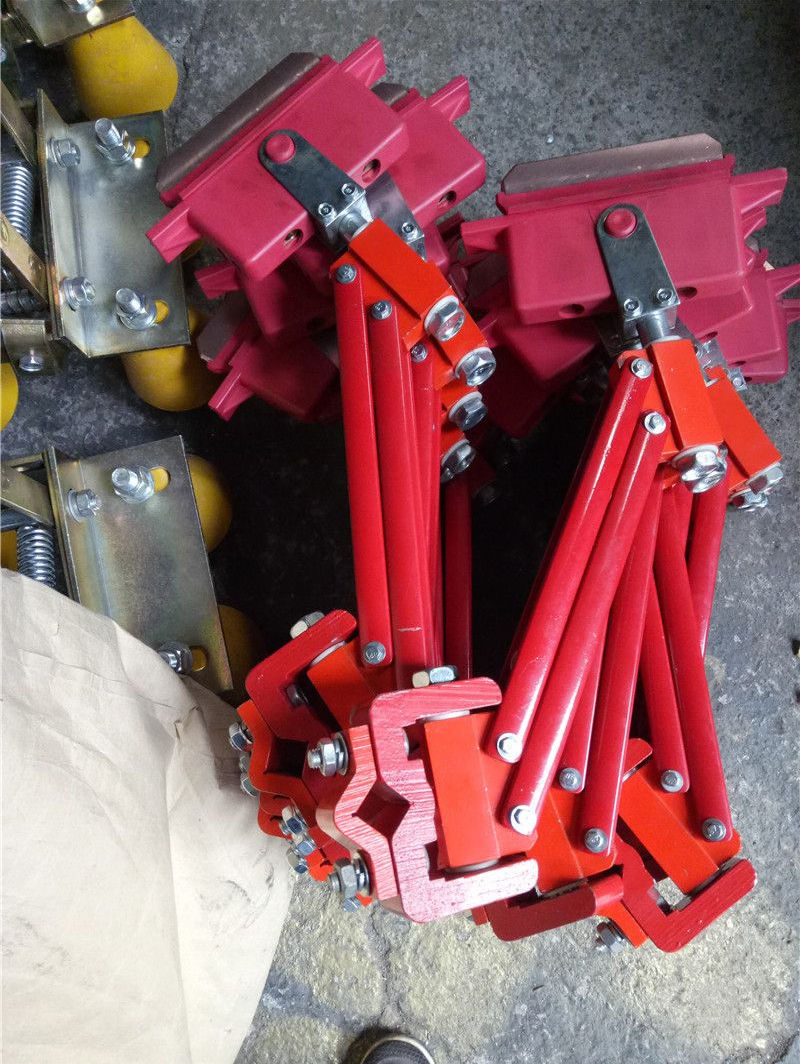

Current Collectors for Seamless Conductor Rail:
This type is the most commonly seen current collector for overhead crane or gantry crane. It is composed of the carbon brush, power cable, arm, spring and bracket.
It is suitable for C/H/U type conductor rails and can be single pole and multi-pole with current 100A, 150A, 200A, 250A, 500A, 800A, 1200A, etc.
-

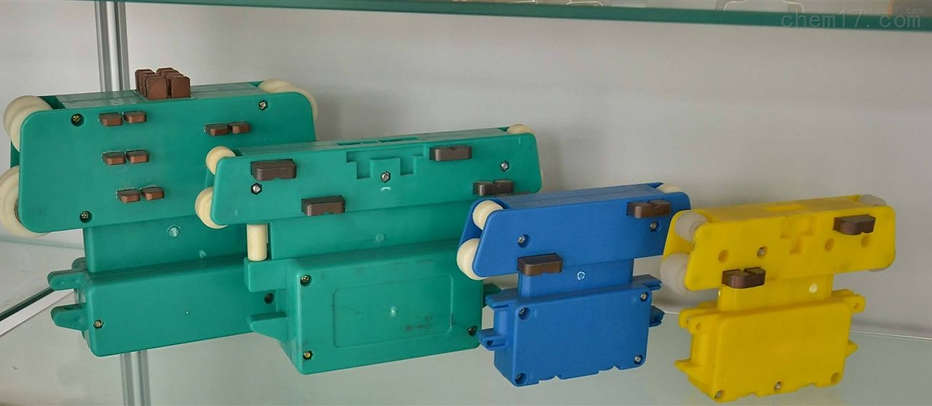

Current Collectors for Enclosure Tube Type Rail:
This current collector is for the enclosed tube type conductor rails. It has 3 poles to 16 poles. It has the features of High copper content, Nylon ball bearing wheels, high quality thickening shell, etc.
We supply Large three-pole, double brush, ordinary turning, turning, big head double brush, high and low foot turning, high and low foot, multi-pole busbar collector ordinary four-pole, high and low foot four-pole, ordinary type, general four-pole ZJG, small double brush, five-pole, four-pole, double cover double hole, six-pole turning, small seven-pole, large seven-pole, eight-pole turning, ten-pole, sixteen-pole, dustproof double brush, large four-pole, four-wire socket multi-pole busbar collectors.
-

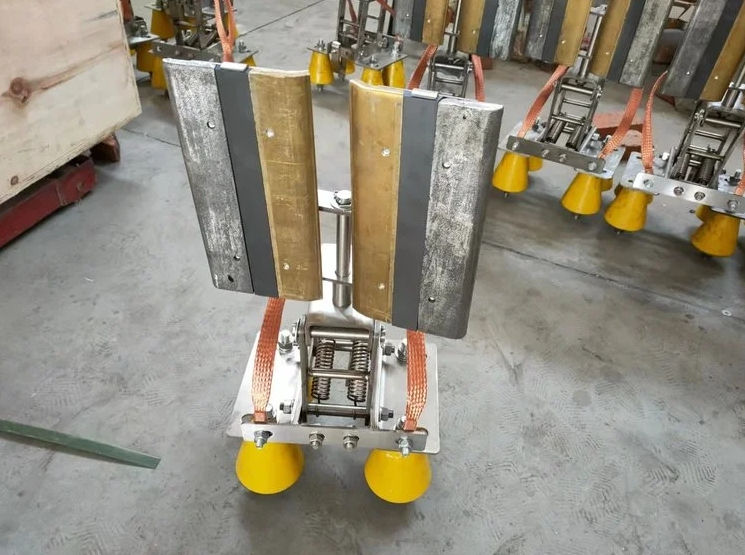

Current Collectors for Copper Head Conductor Rails:
The rigid current collector consists of two parts: a tension device of a mechanical structure and a collector brush that is in direct sliding contact with the guide rail. The rigid current collector is the main device for collect electric energy from the side, which is in sliding contact with the conductor rail through the collector brush conducts electrical energy directly to the electrical consumers, thus realizing mobile power supply for the system. Current 300A, 400A, 500A, 700A, 900A, 1000A, 1300A, 1900A, etc.
Copperhead steel body conductor is composed of copper rails, rail brackets, insulator components and external collectors. Because of its high current, high temperature resistance and corrosion resistance, it is widely used in metallurgy, shipbuilding, ports and other industries.
